Pneumatic Carpet Carver

Item No. :  ECC-700

Inquiry Download

Details


mod. ECC-700  Carpet carving machine with standard blade #4017


Air-driven carpet carver comes with standard blade #4017 and one extra blade (#4017) and all necessary air fittings packed in a carrying case.


*Lightweight yet powerful.

*Suitable for production-line use.

*Easy to maintain.

*Low vibration.

*Create any carved rug design easily.

*Air filter & air gauge regulator.

*Air braid hose.

*Air pressure gauge reading : 0~10 kg/cm²/0~160 PSI

*Air comsurption : 60 PSI or 4 kg/cm²

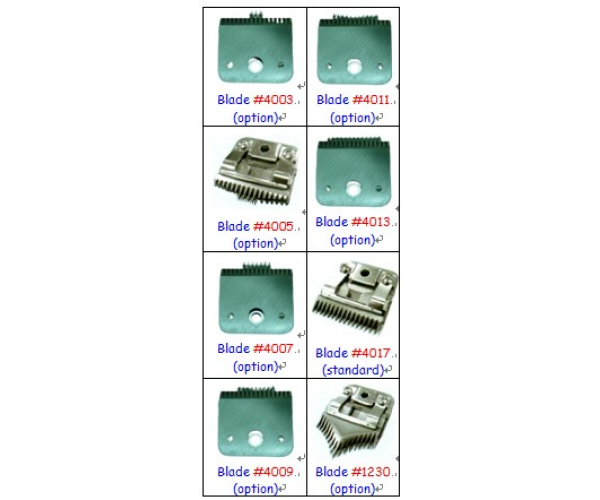

 Blade width   5mm (#4003) option

 Blade width  10mm (#4005) option

 Blade width  15mm (#4007) option

 Blade width  20mm (#4009) option

 Blade width  25mm (#4011) .option

 Blade width  30mm (#4013) option

 Blade width  40mm (#4017) standard

 Blade width        (#1230) option

 carver weight : 700 grams


Packing: 3.0kgs/2.2kgs (G.W./N.W.) each

unitin a carrying case. 5 units/Shipping carton 16kgs/15kgs (G.W./N.W.)  Measurement : 32x37x8.5cm
