Puller With Direct-Driving Computeried (Made in Taiwan)

Item No. :  HCB-3815-C

Inquiry

Details

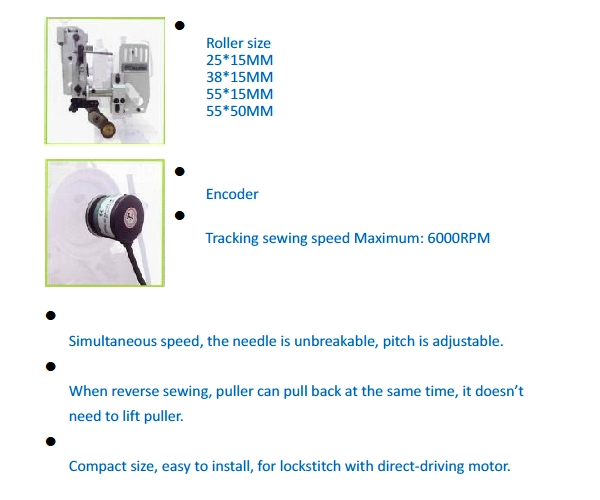

HCP-3815-C

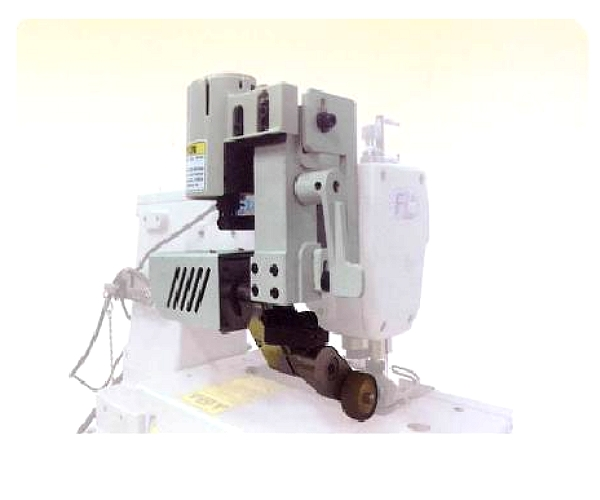

Computerized Puller Device For Coverstitch/Interlock

sewing machines with direct-drive servo motor with

roller size:38X15mm.   Other roller size: 25x15mm,

55x50mm also available on request.



Feature :

 Advantage of Computerized puller:

1. With direct drive motor, more intelligent than traditional puller

2. Computational fine encoder, more higher precision than

     traditional puller .

3. Synchronized with sewing machine

4. Automatic lift put puller machine, When the sewing machine

    stops, computerized puller is automatically lifted. Traditional

    puller needs to step on the pedal to lift the puller.

5. Stitch size : 0.1mm -10mm, traditional puller 1mm-6mm,

     more accurate than traditional puller

6. Panel manipulation: Press the + - symbol to control the speed,

    the traditional puller adjusts the speed with the knob

7. Automatic release puller, traditional puller can’t do it.

8. Anti-wrinkle, an absolute bargain

9. Lighter and smaller than traditional puller.

10.Suitable for all kinds of direct-drive coverstitch interlock sewing

      machines.

11.Suitable for Reverse solenoid is at back of machine and the

     Foot lift solenoid is located on the back of the machine, don’t

     need to use the relocation set, compared with traditional puller

     is more compatibility

12.The template sewn is more and more popular in the production

     and manufacture of garments. The computerized puller can solve

     the problem that the product is not beautiful due to

     uneven  stitching caused by uneven pushing force by hand.
