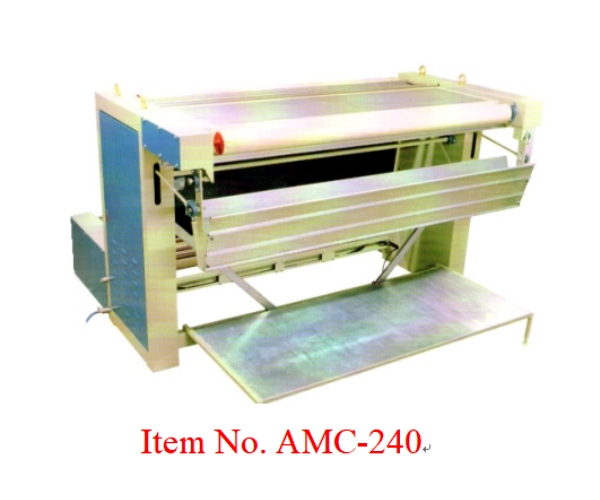

Fabric Shrinking & Forming Machine

Item No. :  AMC-240

Inquiry Download

Details


*Steamed fabric pre-shrinking and automatic constant-temperature drying

  zone, vacuumed suctioning, cooling, shaking and folding of fabric


LENGTH              EFFECTIVE WIDTH

96” (2500mm)           Max. 62.4” (2000mm)

WIDTH                RELEASE SWING

90.28” (2257mm)         Max. 32” (800mm)

HEIGHT               CLOTH DIAMETER

62.4” (1560mm)          Max. 14” (350mm)

RATED VOLTAGE       RELEASE SPEED

3 PHASE 220V           0~15m/min

POWER CONSUMPTION  VAPOR PRESSURE

3HP+24KW              0.5Mpa~0.7Mpa


APPLICATION

Smooth the clothing cutting process.

Keep the clothing’s dimension and shape stable.

Reduce the fabric shrinking problems after ironing during the sewing procedure.

To bring better effect for bonding fabric & interlining.  After shrinking and shaping in advance,

   the fabrics are without the shrinking problems of cuttingsewing or ironing.

It is easy to produce and increase the additional values of the products
