Details

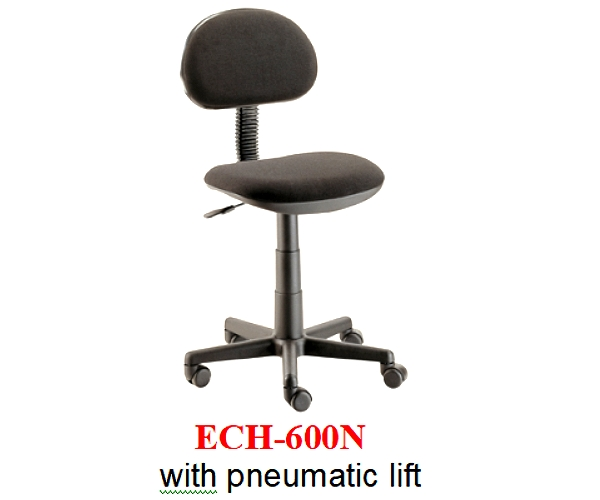

ECH-600N with pneumatic lift
Swivel seat with waterfall front in high quality woolly polyester fabric*. Chair features a specially designed lumbar support made of high density PU foam. All chairs have a 5-legged base made from durable polymer with casters or floor glides to choose from. Color available in blue and grey or other color**. The chair is built for usage of individuals up to 150 kgs or 330 pound. These chairs are ideal for single task situations.
*We can supply fire retardant fabric in different grades at extra charge.
**Color chart will be sent upon request.
Model
| Seat (WxD) | Seat Height (Adjustable) | Back (WxH) | Pneumatic Lift | Upholstery | Foam | Loadability (container) |

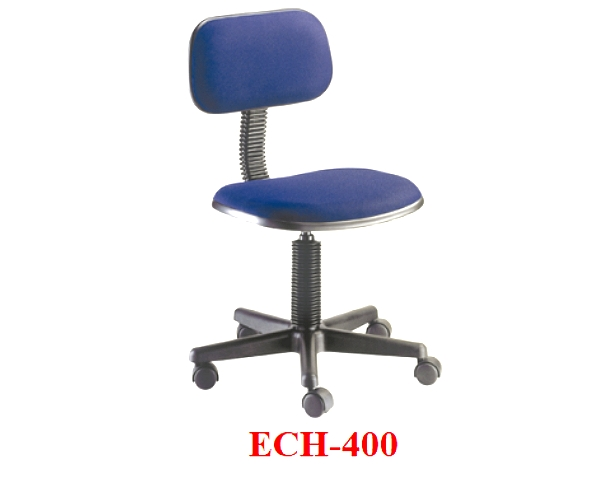

ECH-400
| 420x390mm (16-1/2”x15-3/8”) | 410~490mm (16-1/8”x19-1/4”) | 380x220mm (15”x8-5/8”) | No (Manual) |
Woolly Polyester |
Dense cell Polyure-thane
| 720/20’ 1530/40’ |
ECH-400N
| 420x390mm (16-1/2”x15-3/8”) | 420~525mm (16-1/2”x20-3/4”) | 380x220mm (15”x8-5/8”) |
Yes | 720/20’ 1530/40’ | ||
ECH-600N
| 420x380mm (16-1/2”x15”) | 435~540mm (17-1/8”x21-1/4”) | 390x250mm (15-3/8”x10”) | 670/20’ 1365/40’ | |||

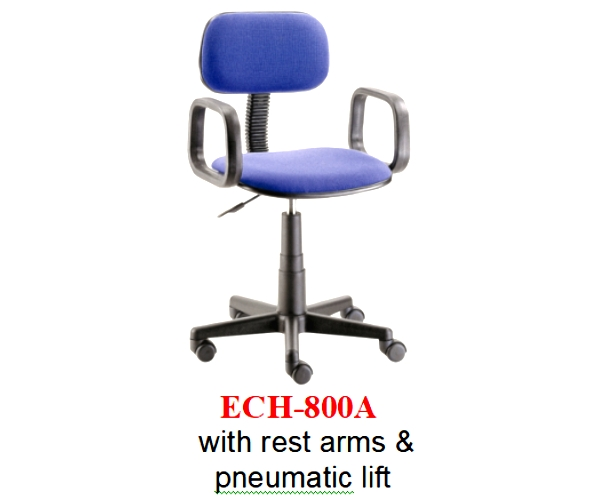

ECH-800A
| 420x390mm (16-1/2”x15-3/8”) | 420~525mm (16-1/2”x20-3/4”) | 380x220mm (15”x8-5/8”) | 720/20’ 1530/40’ | |||
ECH-900N
| 460x420mm (18-1/8”x16-1/2”) | 450~555mm (17-3/4”x21-7/8”) | 385x360mm (15-1/8”x 14-11/16”) | 350/20’ 700/40’ |
N.B. Extra seat height available upon request
Larger seat also available at extra charge
