Automatic Label Attaching & Tie-off Machine

Item No. :  LA-1900

Inquiry Download

Details

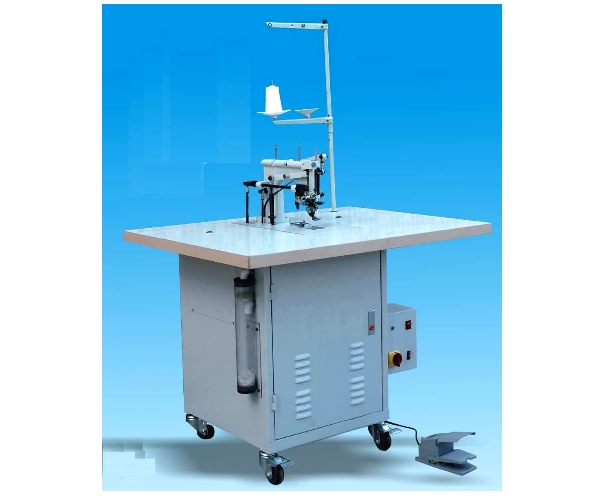

Automatic Label Attaching & Tie-off Machine


Features :

HIGH EFFICIENCY THREAD CUTTER                            MATERIAL DAMAGE

Automatic thread cutter cuts binding yarn at every              Due to binding with yarn, machine brings on

time after binding, Hence quality of cutter material              very few chance to damage materials.

was investigated minutely, it cuts cleanly for a long

period.



EASY TO USE                                                                  NO WORRY FOR INJURY

   Only step ON the foot pedal for machine start.                      No pins and staples are used, customers are

   It is very easy and simple operation.                                      free of concern to dispose of pins or staples.

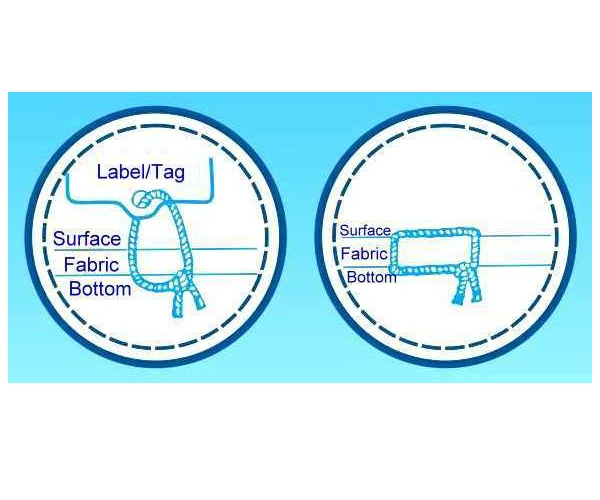

TROUBLE FREE                                                             TAG ATTACHING

   Due to CAM drive system, machine has very                       Tag attaching is also possible with this machine.

   few troubles in long time use.



STABLE STITCH CONDITION                                        NO SPECIAL WORK SPACE IS REQUIRED

   Stitch condition is always stable of which is using                  Machine has caster, it is easy to move therefore

   accurate finished parts and careful fabrication.                     any place is possible to operate this machine.



NEEDLE TO BE USED

   Thick to thin needle can be attached in this

   machine, customer have the option of suitable

   needle ion.

Specifications

mod. LA-9100

Stitch speed

1.5~2 sec


Table size

900x750mm

Presser foot height

28mm


Table height

800mm

Neddle used

TVx5,   UY128


Nos. of stitch

1 or 2   position

Thread size

#30-80   Cotton


Stitch speed

Abt.   1.5-2sec

Stitch width

10mm


G.W./N.W.

118/155   kgs

Throat depth

210mm


Stitch yarn tail

7 or 25mm   from the knot (switchable)

Start

Pedal


Detector

Beam   sensor

Emergency stop

Pedal


Control

Manual /   Automatic 1 / Automatic 2

Stop

Automatic   stop




Stitch width

10mm




Power input

220V   50/60Hz
