1-Needle Unison Feed Flatbed Lockstitch Sewing Machine(Made in Taiwan)

Item No. :  EM-1508

Inquiry Download

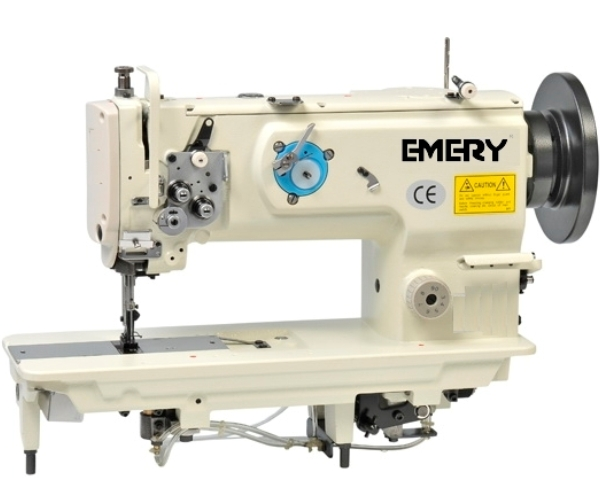

1-Needle Unison Feed Flatbed Lockstitch Sewing Machine

(Made in Taiwan)

models :


EM-1508NH        with automatic lubricating

EM-1508NH-T     for thick thread (#0)

EM-1508NH-FL   with pneumatic auto-lifter

EM-1508NH-BT   with automatic backtack and auto-lifter

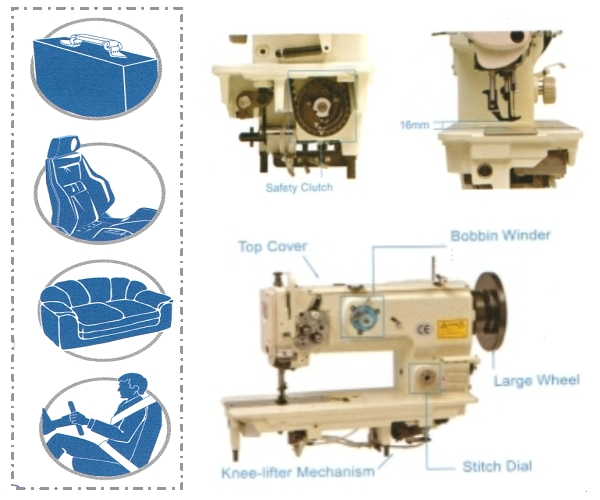

* With the adoption of a new complete rectangular feed mechanism,

      an alternating vertical movement mechanism,   and a unison-feed

      mechanism, the machine can feed heavy materials for industrial use,

     such as cargo handling belts, car seat, sofas, and bags.

The maximum stitch length is 9mm, the needle bar storke is 38mm.

     and an extra large steel hand-wheel with a diameter as large as 175mm,

     the machine supports the sewing of extra heavy   materials.

Max. sewing speed

2,500 s.p.m.

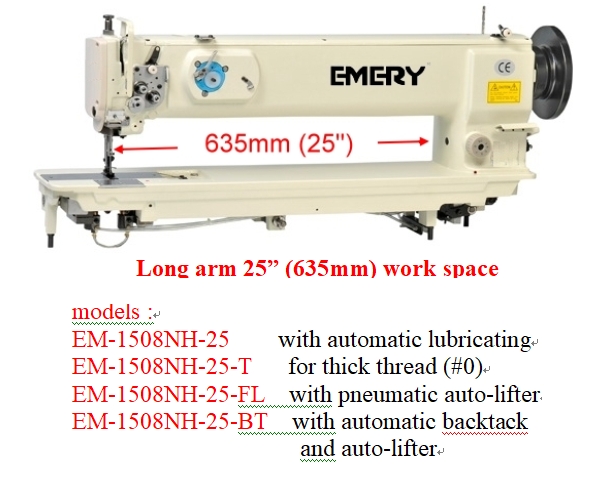

Working space

255 mm / 635mm

Max. stitch length

9 mm

Needle to be used

 DPx17   #23

Lift of the presser foot

9 mm by Hand

16 mm by Knee

Needle system

#20 ~ #25

Alternating vertical movement

2.5~6.5 mm


#20 ~ #1

Needle bar stroke

38 mm

Motor to be used

Clutch Motor, 1/2HP,4P
