Details
Cylinder Bed Extra Heavy Duty Lockstitch Sewing Machines (Made in Taiwan)

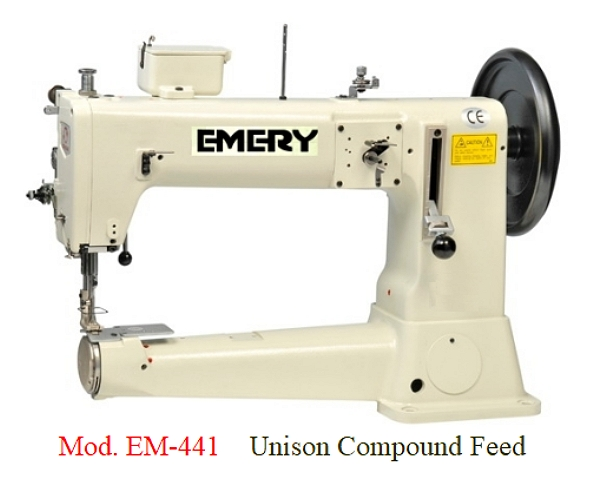

Mod. EM-441
Cylinder bed unison feed extra heavy duty lockstitch sewing machine

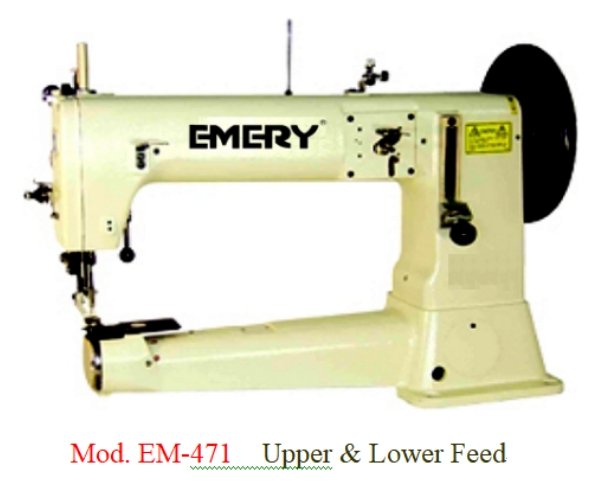

EM-471
Cylinder bed upper & lower feed extra heavy duty lockstitch sew. machine
FEATURES:
l With powerful unison feed, the machine can sew accurately and easily multiply heavy weight materials.
l The lifting amount of presser foot is as high as 20mm and the working space is
as wide as 420mm, suitable for stitching extra heavy weight materials or large
sewing products with ease.
l Applied the semi-rotary large shuttle hook & bobbin, could reduce the frequency
of changing the bobbin thread and increase the sewing efficiency. The bobbin
winder is incorporated with on the machine head.
SPECIFICATIONS:
Max. sewing speed | 800 s.p.m./1,000 s.p.m. | Needle to be used | Schmetz 794 Nm230 (Size #26) |
Max. stitch length | 11 mm | Needle system | Nm130~Nm280 (#21~#28) |
Lift of the presser foot | 12 mm by Hand 20mm by Knee | Thread | #00~#8 |
Diameter of cylinder-bed | 81 mm | Motor to be used | Clutch Motor, 3/4HP,4P |
Needle bar stroke | 56 mm | N.W./G.W. | 53/62 KGS : 41/54KGS |
Working space | 420 mm/220mm | Meas. | 0.19 CBM/0.152CBM |
